Suffixus T230
10013
INDOOR
RECESSED
ALEXA, SIRI, GOOGLE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor |
| Mounting Position | Ceiling recessed |
| IP | 20 |
| Wattage | 10W |
| Lumen Output | 760 |
| Connection | 230V |
| Driver | Not required |
| Dimmable | Phase Dim |
| CRI | >90 |
| Life Time | L80/B10>25.000 h |
| Cut-out Size | Ø62 h130mm |
| Dimmensions | Ø68 h121mm |
| Adjustable | No |
10013.10.**.*.**.DTR
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 10013 | 10 | 27 2700K |  1 Narrow 12º |  11 White & White | DTR Phase dim |
| 30 3000K |  2 Medium 24º |  14 White & Gold | |||
| 40 4000K |  3 Wide 36º |  22 Black & Black | |||
 24 Black & Gold |

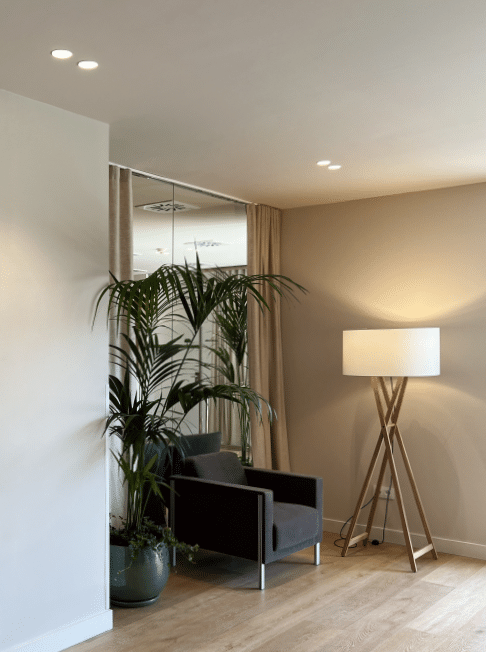

RESIDENCIA MAS ANGLI / PROJECT: NORA BATLLE
