Suffixus HE
10013
INDOOR
RECESSED
ALEXA, SIRI, GOOGLE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor |
| Mounting Position | Ceiling recessed |
| IP | 20 |
| Driver | Not included |
| Dimmable | ON/OFF, DALI, PUSH (See drivers section) |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | Ø62 mm |
| Adjustable | No |
| Wattage | 5W | 6,7W |
| Lumen Output | 750 | 980 |
| Connection | 150mA | 200mA |
| Dimensions | Ø68 h91mm | |
| Cut-out Size | Ø62 h101mm |
| Wattage | 8,6W | 12,3W |
| Lumen Output | 1200 | 1600 |
| Connection | 250mA | 350mA |
| Dimensions | Ø69 h118mm | |
| Cut-out Size | Ø62 h126mm |
10013.*.**.*.**.XXX
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 10013 | 5 | 27 2700K |  1 Narrow 15º |  11 White & White | XXX Driver not included (See drivers section) |
| 7 | 30 3000K |  2 Medium 25º |  14 White & Gold | ||
| 9 | 40 4000K |  3 Wide 39º |  22 Black & Black | ||
| 12 |  4 Superwide 61º |  24 Black & Gold |

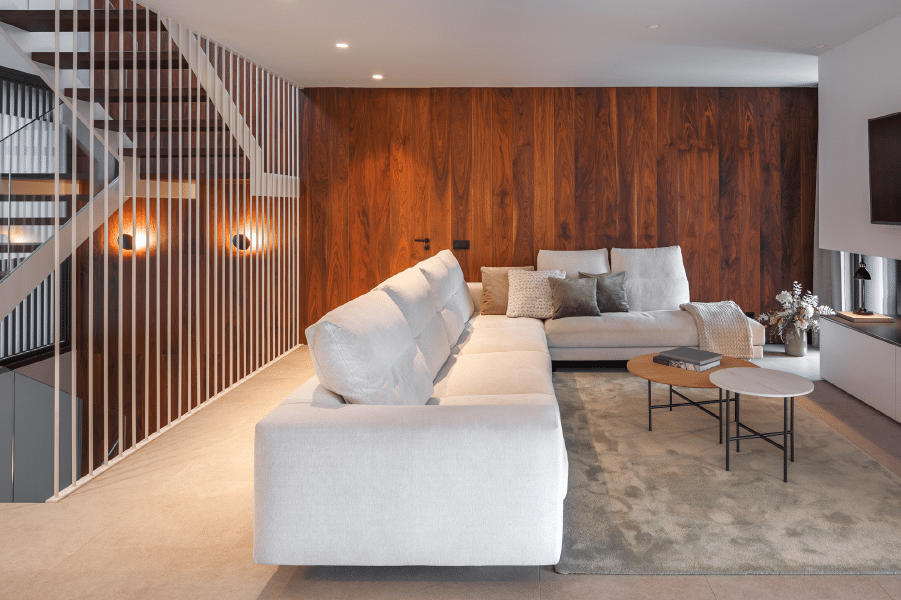

PROJECT: SANDRA SOLER STUDIO / PHOTO: MARC TORRA
