Pictus Track
20023
INDOOR
TRACK
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor | |
| Mounting Position | Track | |
| IP | 20 | |
| Wattage | 5W | 6,8W |
| Lumen output | 670 | 850 |
| Connection | 230V | |
| Driver | Included built-in | |
| Dimmable | Non-dimmable Dimmable DALI |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | 70mm |

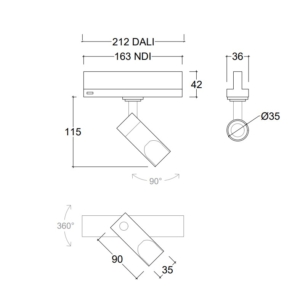

| Dimmensions | Ø35 h90mm |
| Adjustable | Yes |
20023.7.**.*.**.NDI / DAL
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 20023 | 5 | 27 2700K |  1 Narrow 20º |  10 White | NDI Non-dimmable Driver (only 7W) |
| 7 | 30 3000K |  2 Medium 38º |  20 Black | DAL DALI Driver (only 5W) | |
| 40 4000K |  3 Wide 50º |  30 Aluminium | |||
 40 Gold | |||||
 A0 Corten | |||||
| B0 Copper | |||||
| Other finishes available upon request |
