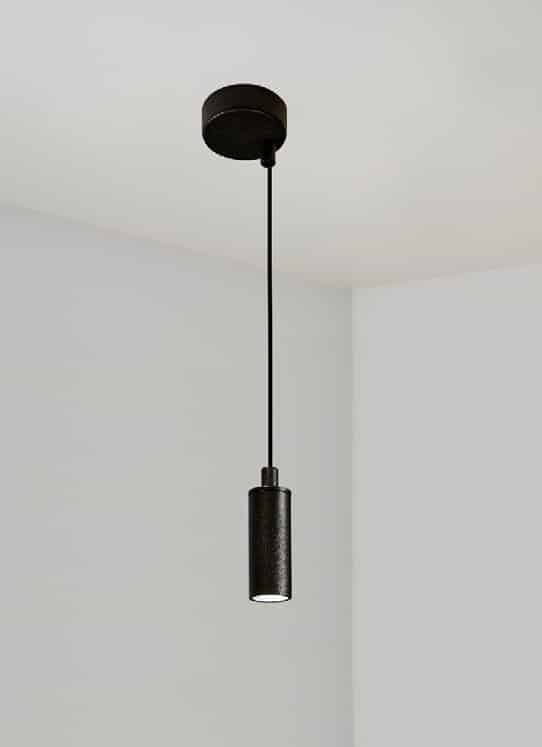

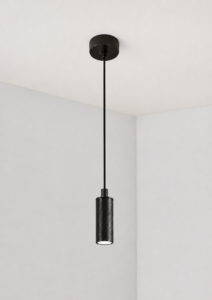

Pictus Cylinder Suspended
35077
Standard: surface mounted canopy
INDOOR
SUSPENDED
DIMMABLE
CASAMBI
WIRELESS
Download PDF Download PDF| Installation | Indoor |
| Mounting Position | Suspended |
| IP | 20 |
| Wattage | 5W |
| Lumen output | 665 |
| Connection | 150mA |
| Driver | Not included |
| Dimmable | ON/OFF, DALI, PUSH (See drivers section) |
| CRI | >90 |
| Life Time | 40.000 h |
| Cut-out Size | – |

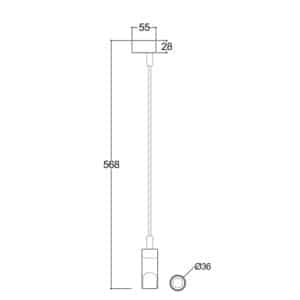

| Dimmensions | Ø35 h568mm |
| Adjustable | No |
35077/1
| Installation | Indoor |
| Mounting Position | Suspended |
| IP | 20 |
| Wattage | 5W |
| Lumen output | 665 |
| Connection | 230V |
| Driver | Included built-in |
| Dimmable | Non-dimmable Dimmable DALI (only base 105x35mm) |
| CRI | >90 |
| Life Time | 40.000 h |
| Cut-out Size | – |

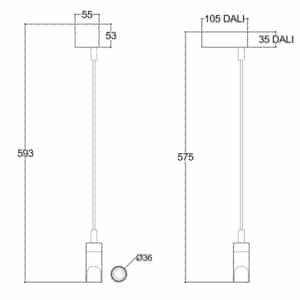

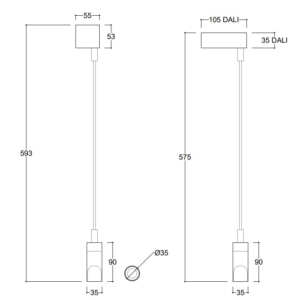

| Dimmensions | Ø35 h593mm (base 55x53mm) Ø35 h575mm (base 105x35mm) |
| Adjustable | No |
35077
35077/1.5.**.*.**.XXX
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 35077/1 | 5 | 27 2700K |  1 Narrow 20º |  10 White | XXX Driver not included |
| 30 3000K |  2 Medium 38º |  20 Black | (See drivers section) | ||
| 40 4000K |  3 Wide 50º |  30 Aluminium | |||
 40 Gold | |||||
 A0 Corten | |||||
| B0 Copper | |||||
| Other finishes available upon request |
35077.5.**.*.**.NDI / DAL
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 35077 | 5 | 27 2700K | 1 Narrow 20º | 10 White | NDI Non-dimmable Driver |
| 30 3000K | 2 Medium 38º | 20 Black | DAL DALI Driver (only base 105x35mm) | ||
| 40 4000K | 3 Wide 50º | 30 Aluminium | |||
| 40 Gold | |||||
| A0 Corten | |||||
| B0 Copper | |||||
| Other finishes available upon request |

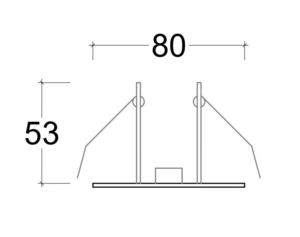

Recessed canopy on request
