Pictus Base Surface
30084
INDOOR
SURFACE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor |
| Mounting Position | Ceiling surface |
| IP | 20 |
| Wattage | 5W |
| Lumen output | 665 |
| Connection | 150mA |
| Driver | Not included |
| Dimmable | ON/OFF, DALI, PUSH (See drivers section) |
| CRI | 90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | – |

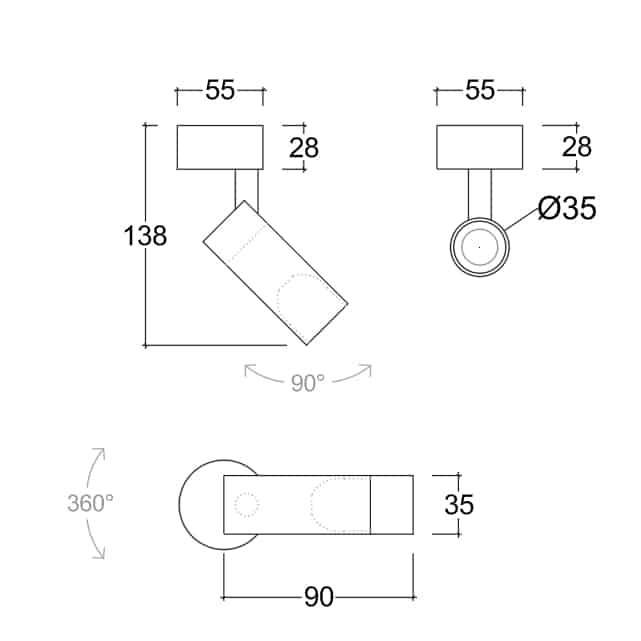

| Dimmensions | Ø35 h138mm |
| Adjustable | Yes |
REMOTE DRIVER
| Installation | Indoor |
| Mounting Position | Ceiling surface |
| IP | 20 |
| Wattage | 5W |
| Lumen output | 665 |
| Connection | 230V |
| Driver | Included built-in |
| Dimmable | Non-dimmable Dimmable DALI (only base 105x35mm) |
| CRI | 90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | – |
| Dimmensions | Ø35 h163mm |
| Adjustable | Yes |

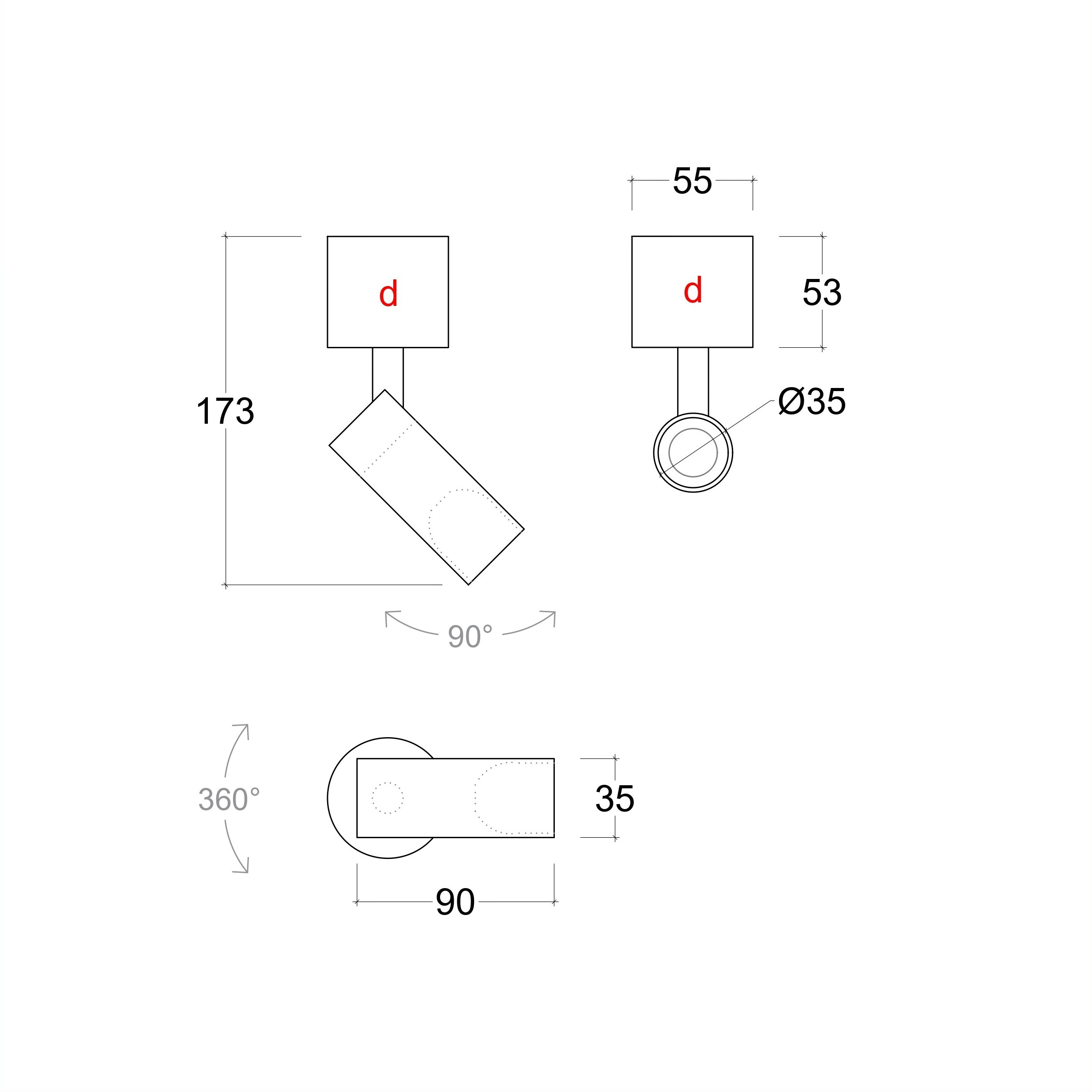

DRIVER ON/OFF (base 55x53mm)

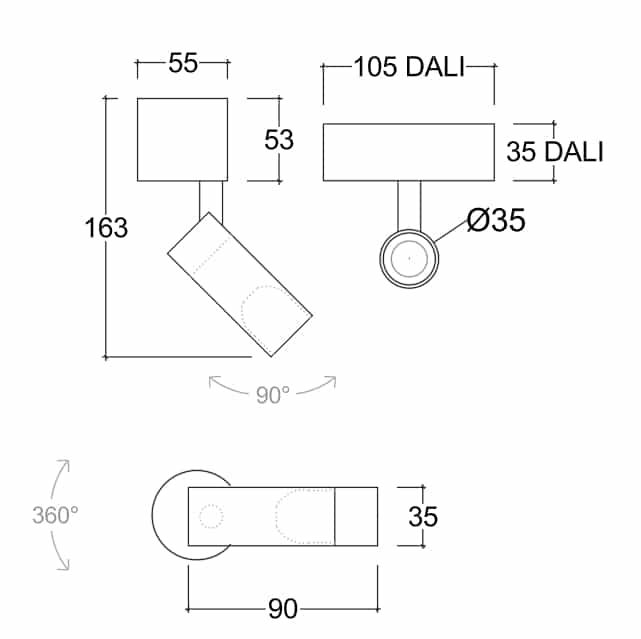

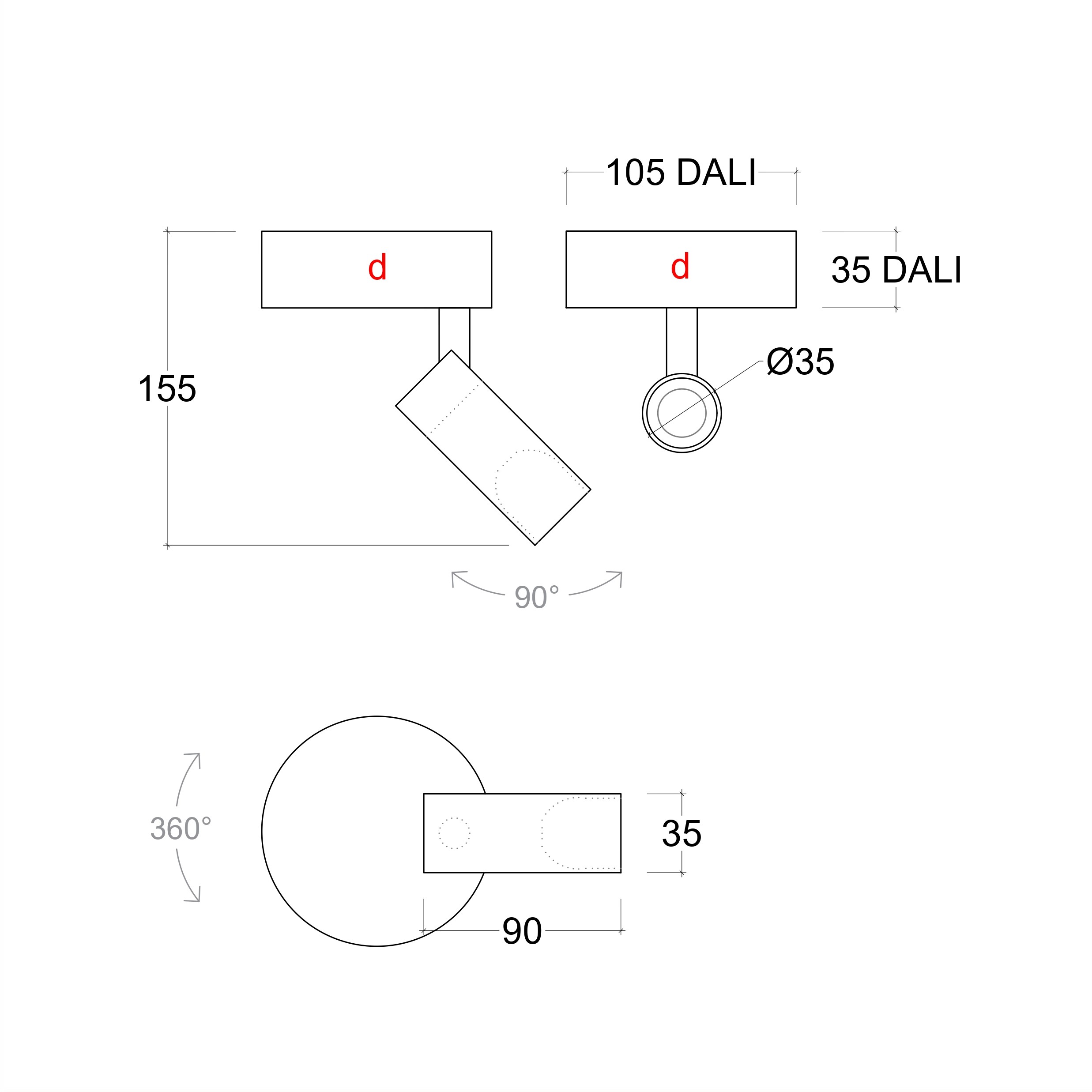

DRIVER DALI (base 105x35mm)
30084.5.**.*.**.XXX / NDI / DAL
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 30084 | 5 | 27 2700K |  1 Narrow 20º |  10 White | XXX Driver not included (only base 55x28mm) (See drivers section) |
| 30 3000K |  2 Medium 38º |  20 Black | NDI Non-dimmable Driver (only base 55x53mm) | ||
| 40 4000K |  3 Wide 50º |  30 Aluminium | DAL DALI Driver (only base 105x35mm) | ||
 40 Gold | |||||
 A0 Corten | |||||
| B0 Copper | |||||
| Other finishes available upon request |
