Pictus Base Recessed
10036
INDOOR
RECESSED
ALEXA, SIRI
GOOGLE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor |
| Mounting Position | Ceiling surface |
| IP | 20 |
| Wattage | 5W |
| Lumen output | 665 |
| Connection | 150mA |
| Driver | Not included |
| Dimmable | ON/OFF, DALI, PUSH (See drivers section) |
| CRI | 90 |
| Life Time | L80/B10 >55.000 h |

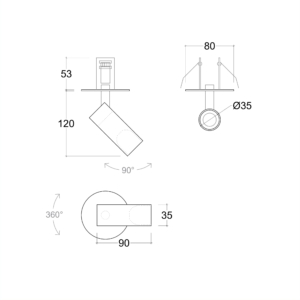

| Cut-out Size | Ø60 h60mm |
| Dimmensions | Ø35 h108mm |

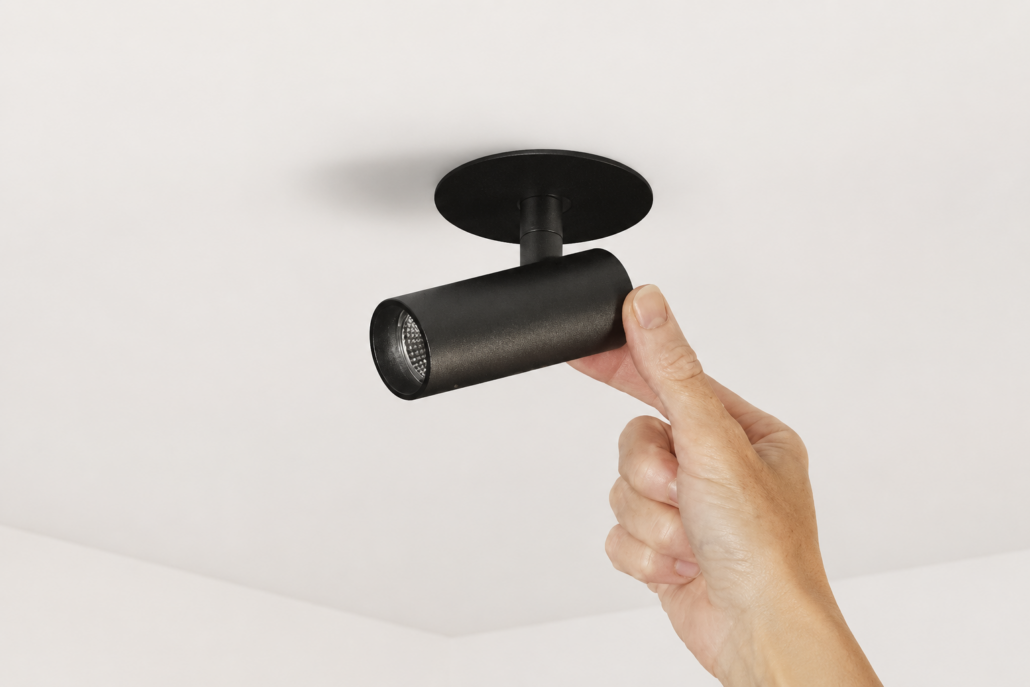

| Adjustable | Yes |
10036.5.**.*.**.XXX
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 10036 | 5 | 27 2700K |  1 Narrow 20º |  10 White | XXX Driver not included (See drivers section) |
| 30 3000K |  2 Medium 38º |  20 Black | |||
| 40 4000K |  3 Wide 50º |  30 Aluminium | |||
 40 Gold | |||||
 A0 Corten | |||||
| B0 Copper | |||||
| Other finishes available upon request |
