Museum Plus Track
20022
INDOOR
TRACK
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor | |
| Mounting Position | Track | |
| IP | 20 | |
| Wattage | 12,3W | 23,6W |
| Lumen output | 1600 | 3300 |
| Connection | 230V | |
| Driver | Included built-in | |
| Dimmable | Non-dimmable Dimmable DALI |
| CRI | >90 |
| Life Time | L80/B10 > 55.000h |
| Cut-out Size | – |
| Dimmensions | Ø93 h90mm |
| Adjustable | Yes |
| Track connector | ON/OFF 168mm DALI2 12,3W 212mm DALI2 23,6W 248mm |
20022.**.**.*.**.NDI / DAL
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 20022 | 12 | 27 2700K |  1 Narrow 12º |  10 White | NDI Non-dimmable Driver DAL DALI |
| 24 | 30 3000K |  2 Medium 25º |  20 Black | ||
| 40 4000K |  3 Wide 36º | Other finishes available upon request |

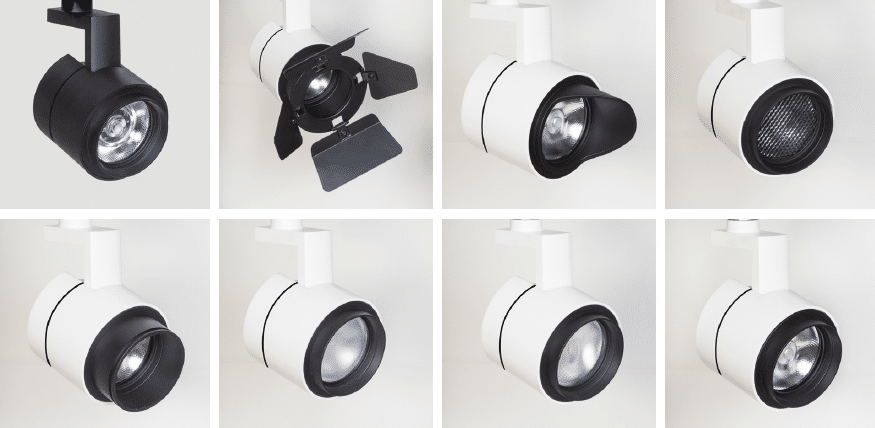

20022.A.1.20 Asymmetric cowl
20022.A.2.20 Symmetric cowl
20022.A.3.20 Barn doors
20022.A.4.20 Oval lens
20022.A.5.20 Spread lens
20022.A.6.20 Honeycomb Louvre
Black
CREP NOVA / PROJECT: CARLOS MARTÍNEZ INTERIORS
NUAD THAÏ MASSAGE SPA
CAFÈ D’ESPANYA TREMP / PROJECT: OLGA ESCOBAR ESTUDIDOS / PHOTO: MAR ARPÓN
EL FOMENT / PROJECT: ESTUDI MAITE PRATS ARQUITECTURA INTERIOR / PHOTO: MARC TORRA

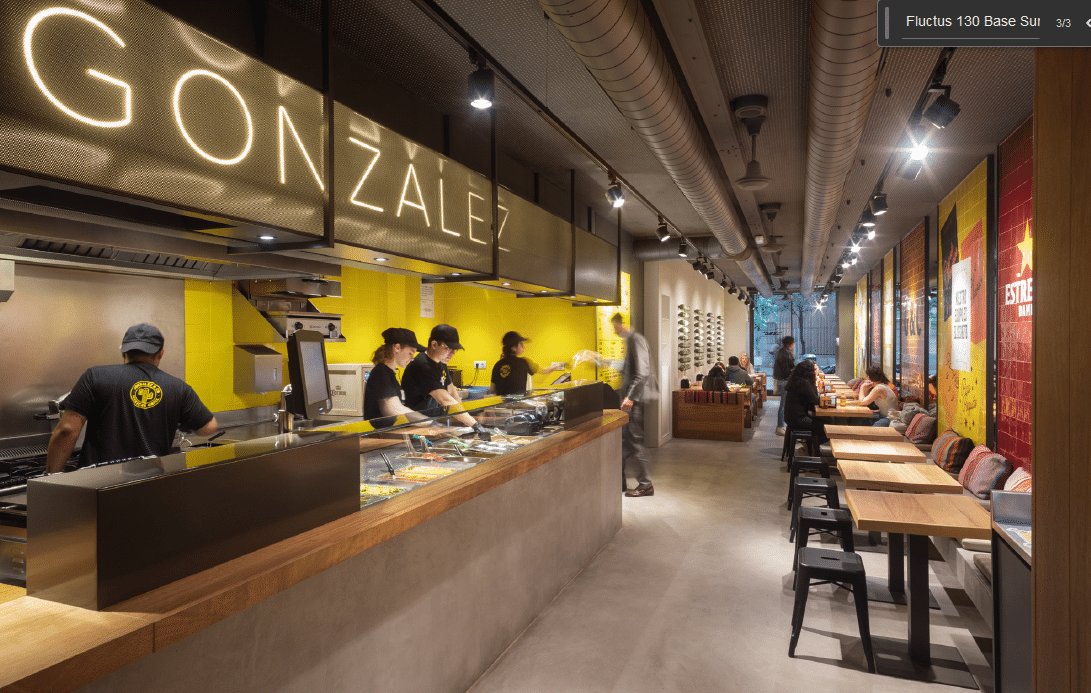

GONZALEZ & CO / PROJECT: TARRUELLA TRENCHS STUDIO / PHOTO: DAVID VILANOVA
