Museum Plus Base Surface
30097
INDOOR
SURFACE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor | |
| Mounting Position | Track | |
| IP | 20 | |
| Wattage | 12,3W | 23,6W |
| Lumen output | 1600 | 3300 |
| Connection | 230V | |
| Driver | Included built-in | |
| Dimmable | Phase Dim |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | – |
| Dimmensions | Ø93 h90mm |
| Adjustable | Yes |
30097.**.**.*.**.DTR
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 30097 | 12 | 27 2700K |  1 Narrow 12º |  10 White | DTR Phase Dim |
| 24 | 30 3000K |  2 Medium 25º |  20 Black | ||
| 40 4000K |  3 Wide 36º | Other finishes available upon request |
20022.A.1.20 Asymmetric cowl
20022.A.2.20 Symmetric cowl
20022.A.3.20 Barn doors
20022.A.4.20 Oval lens
20022.A.5.20 Spread lens
20022.A.6.20 Honeycomb Louvre
Black

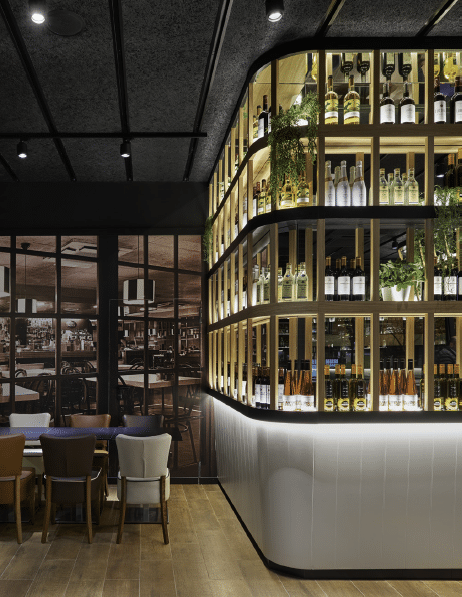

CREP NOVA / PROJECT: CARLOS MARTÍNEZ INTERIORS
