Ipsofacto-a HE
10001
INDOOR
RECESSED
ALEXA, SIRI, GOOGLE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor |
| Mounting Position | Ceiling recessed |
| IP | 20 |
| Driver | Not included |
| Dimmable | ON/OFF, DALI, PUSH (See drivers section) |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | Ø76 mm |
| Adjustable | +/- 20º |
| Wattage | 5W | 6,7 W |
| Lumen Output | 750 | 980 |
| Connection | 150mA | 200mA |

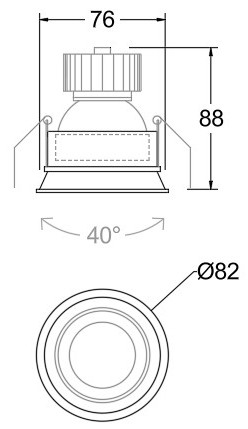

| Dimensions | Ø82 h88mm | |
| Cut-out Size | Ø76 h98mm |
| Wattage | 8,6W | 12,3W |
| Lumen Output | 1200 | 1600 |
| Connection | 250mA | 350mA |

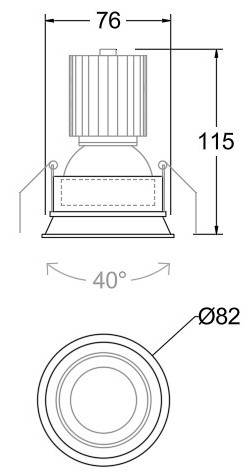

| Dimensions | Ø82 h115mm | |
| Cut-out Size | Ø76 h98mm |
10001.*.**.*.**.XXX
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 10001 | 5 | 27 2700K |  1 Narrow 15º |  10 White | XXX Driver not included |
| 7 | 30 3000K |  2 Medium 25º |  20 Black | (See drivers section) | |
| 9 | 40 4000K |  3 Wide 39º |  40 Gold | ||
| 12 |  4 Superwide 61º |
10001.A.20.99 Spread lens
10001.A.10.99 Oval lens
10001.A.30.99 Honeycomb Louvre
10001.A.11.10 Square frame-1
10001.A.12.10 Square frame-2
White
Other finishes upon request

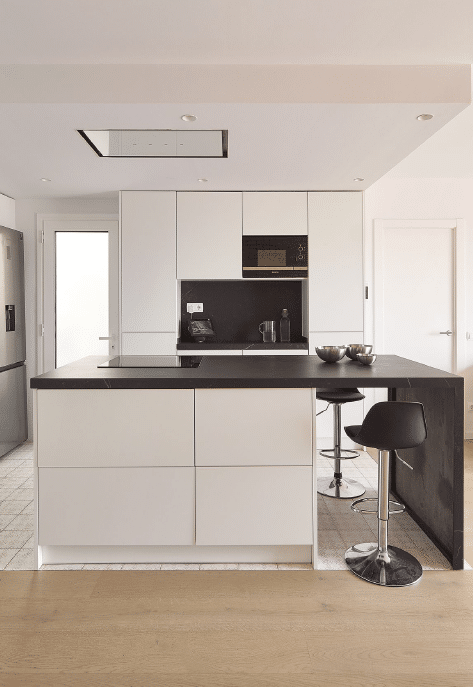

PROJECT: SANDRA SOLER STUDIO / PHOTO: MARC TORRA

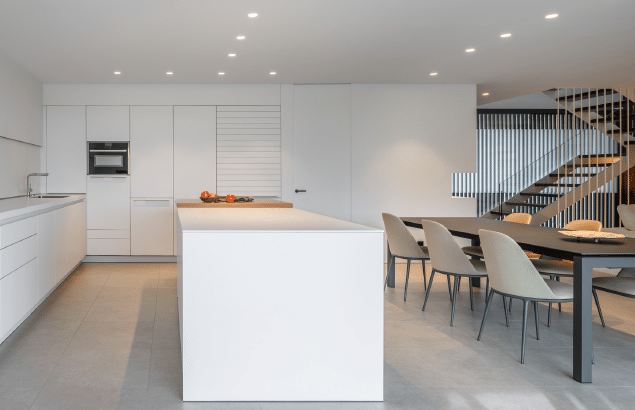

PROJECT: SANDRA SOLER STUDIO / PHOTO: MARC TORRA
PROJECT: OCTAVIO MESTRE ARQUITECTOS
