Fluctus 170 Cylinder Surface
30068
INDOOR
SURFACE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor | ||
| Mounting Position | Surface | ||
| IP | 20 | ||
| Wattage | 6,7W | 8,6W | 12,3W |
| Lumen output | 980 | 1200 | 1600 |
| Connection | 230V | ||
| Driver | Included built-in | ||
| Dimmable | Phase dim DALI |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | – |

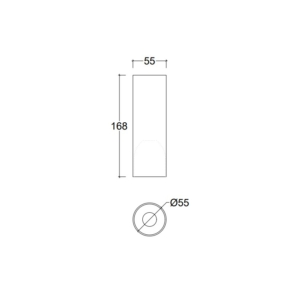

| Dimmensions | Ø56 h168mm |
| Adjustable | No |
30068.*.**.*.**.DTR / DAL
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 30068 | 7 | 27 2700K |  1 Narrow 14º |  10 White | DTR Phase Dim |
| 9 | 30 3000K |  2 Medium 25º |  20 Black | DAL DALI Driver (only 9W and 12W) | |
| 12 | 40 4000K |  3 Wide 40º |  30 Aluminium | ||
 4 Superwide 60º |  40 Gold | ||||
 A0 Corten | |||||
| B0 Copper |
Other finishes are available upon request
for the external body and the internal ring
