Fluctus 130 Track
20024
INDOOR
TRACK
DIMMABLE
CASAMBI
WIRELESS
Download PDF Download PDF| Installation | Indoor | ||
| Mounting Position | Track | ||
| IP | 20 | ||
| Wattage | 6,8W | 8,6W | 12,3W |
| Lumen output | 850 | 1200 | 1600 |
| Connection | 230V | ||
| Driver | Included built-in | ||
| Dimmable | Non-dimmable Dimmable DALI |
| CRI | >90 |
| Life Time | L80/B10 > 55.000h |
| Cut-out Size | – |
| Dimmensions | Ø56 h128mm |
| Adjustable | Yes |
20024.*.**.*.**.NDI / DAL
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 20024 | 7 | 27 2700K |  1 Narrow 14º |  10 White | NDI Non-dimmable Driver |
| 9 | 30 3000K |  2 Medium 25º |  20 Black | DAL DALI Driver | |
| 12 | 40 4000K |  3 Wide 40º | Other finishes available upon request | ||
 4 Superwide 60º |
Other finishes are available upon request
for the external body and the internal ring

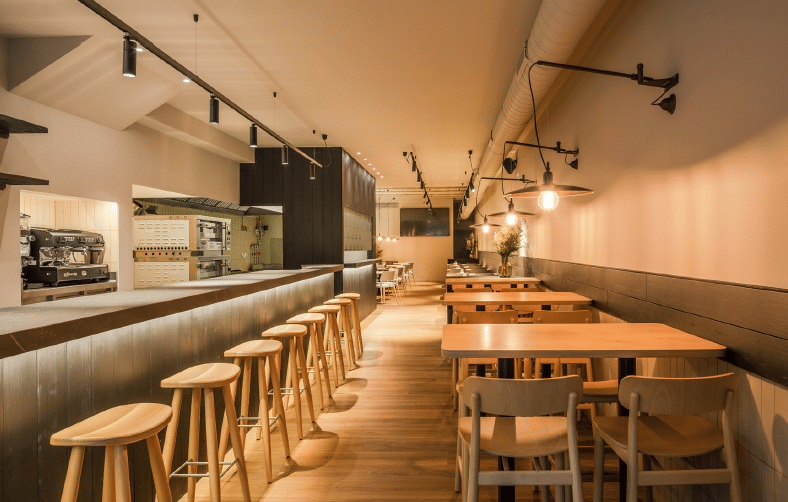

PROJECT: SANDRA SOLER STUDIO / PHOTO: MARC TORRA
