Fluctus 130 Base Surface
30094
INDOOR
SURFACE
CASAMBI
WIRELESS
| Installation | Indoor | ||
| Mounting Position | Surface | ||
| IP | 20 | ||
| Wattage | 6,8W | 8,6W | 12,3W |
| Lumen output | 850 | 1200 | 1600 |
| Connection | 230V | ||
| Driver | Included built-in | ||
| Dimmable | Non-dimmable Dimmable DALI (only 9W and 12W) |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | – |

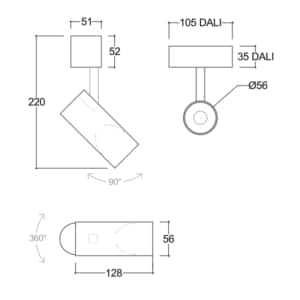

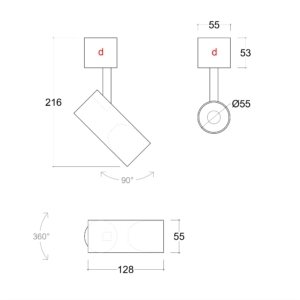

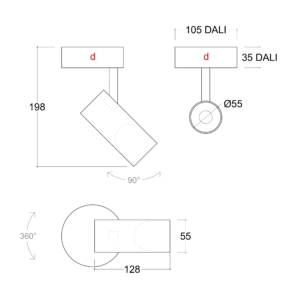

| Dimmensions | Ø56 h220mm |
| Adjustable | Yes |
30094.*.**.*.**.NDI / DAL
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 30094 | 7 | 27 2700K |  1 Narrow 14º |  10 White | NDI Non-dimmable Driver |
| 9 | 30 3000K |  2 Medium 25º |  20 Black | DAL DALI Driver (only 9W and 12W) | |
| 12 | 40 4000K |  3 Wide 40º | Other finishes available upon request | ||
 4 Superwide 60º | |||||
Other finishes are available upon request for the external body and the internal ring
