Fluctus 130 Base Recessed
10037
INDOOR
RECESSED
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor | ||
| Mounting Position | Recessed | ||
| IP | 20 | ||
| Wattage | 6,8W | 8,6W | 12,3W |
| Lumen output | 850 | 1200 | 1600 |
| Connection | 150mA | 250mA | 350mA |
| Driver | Not included | ||
| Dimmable | ON/OFF, DALI, PUSH (See drivers section) |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | Ø70mm h60mm |

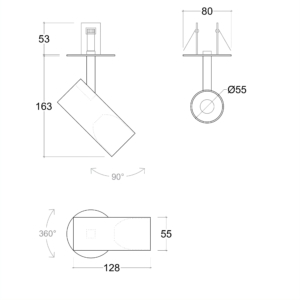

| Dimmensions | Ø56 h128mm |
| Adjustable | Yes |
10037.*.**.*.**.XXX
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 10037 | 7 | 27 2700K |  1 Narrow 14º |  10 White | XXX Driver not included (See drivers section) |
| 9 | 30 3000K |  2 Medium 25º |  20 Black | ||
| 12 | 40 4000K |  3 Wide 40º | Other finishes available upon request | ||
 4 Superwide 60º | |||||
Other finishes are available upon request
for the external body and the internal ring

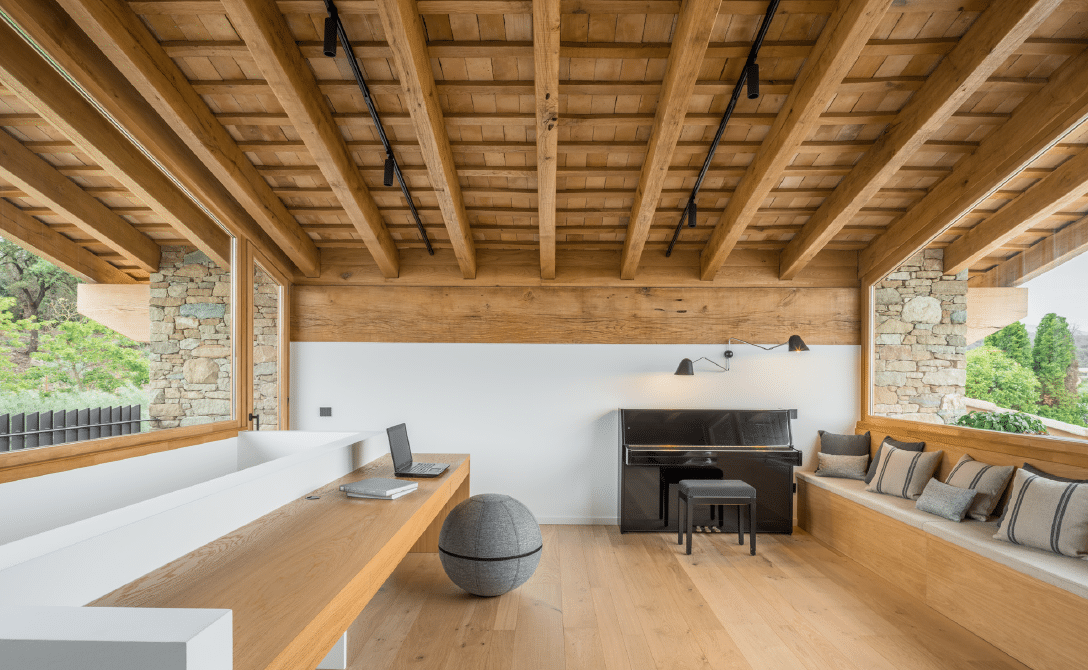

PROJECT: SANDRA SOLER STUDIO / PHOTO: MARC TORRA
