Drivers

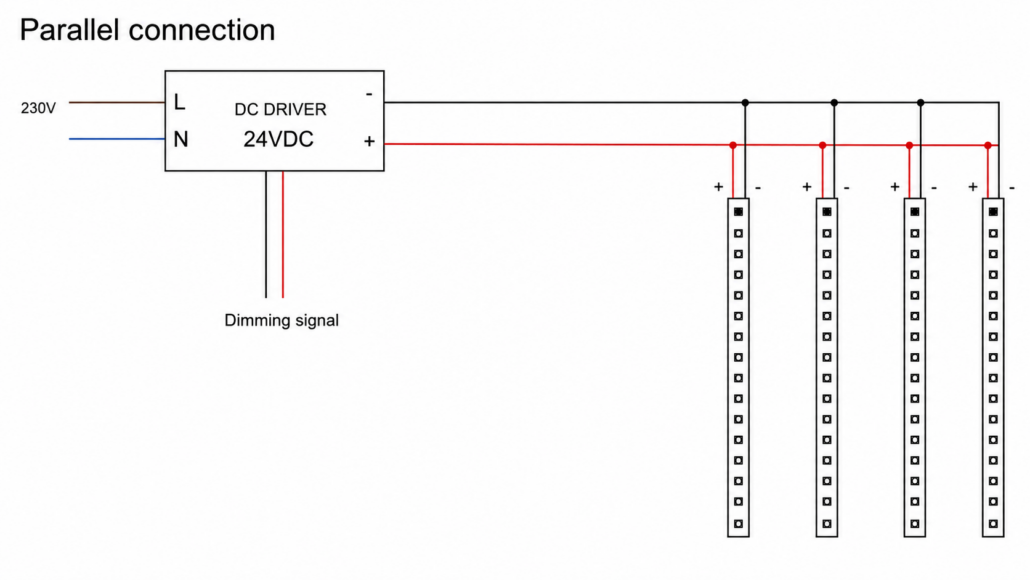

Constant voltage drivers
| Reference | Description | Dimensions | Output | Pmax | Voltage | Dimming | – |
|---|---|---|---|---|---|---|---|

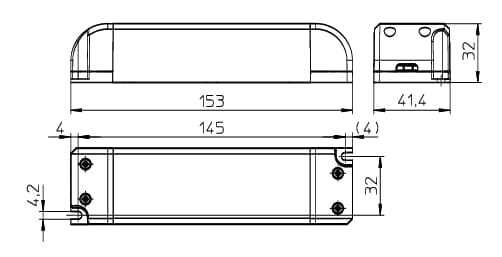

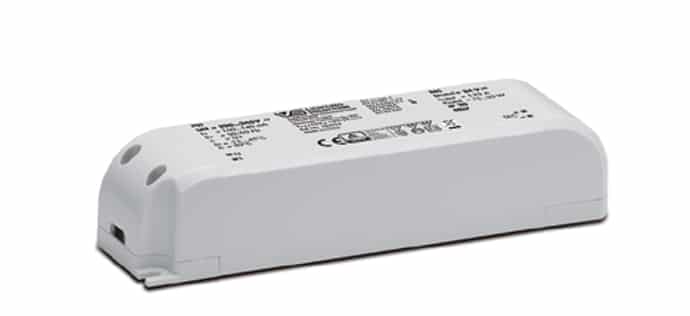

| D2430
| Driver 24VDC 30W VSLH | 153x41x32mm | 24V | 30W | 24V | Non dimmable |  |

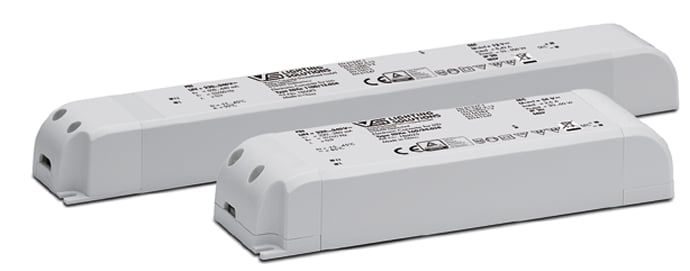

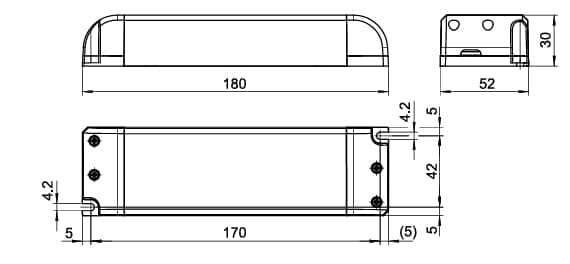

| D2475
| Driver 24VDC 75W VSLH | 180x52x30mm | 24V | 75W | 24V | Non dimmable |  |

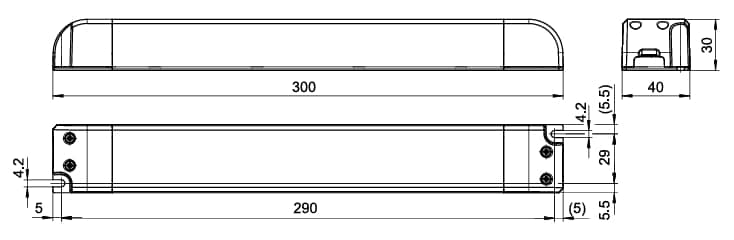

| D24120
| Driver 24VDC 120W VSLH | 300x40x30mm | 24V | 120W | 24V | Non dimmable |  |

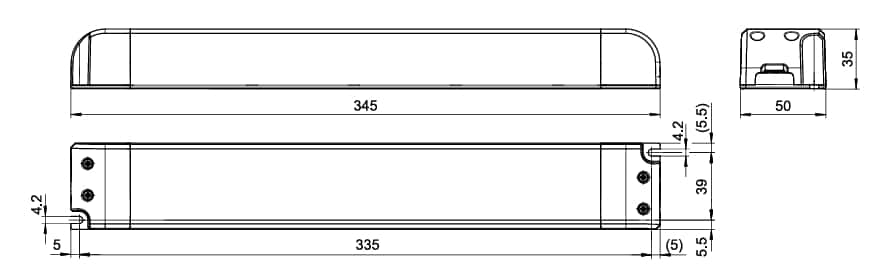

| D24180
| Driver 24VDC 180W VSLH | 345x50x35mm | 24V | 180W | 24V | Non dimmable |  |

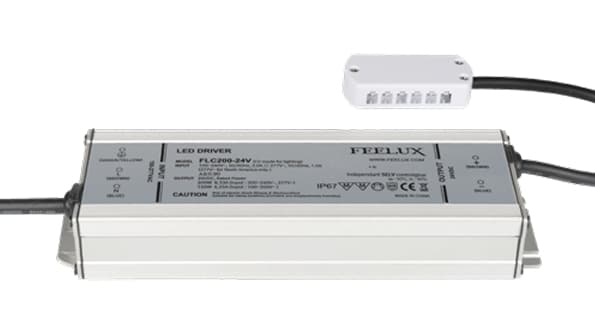

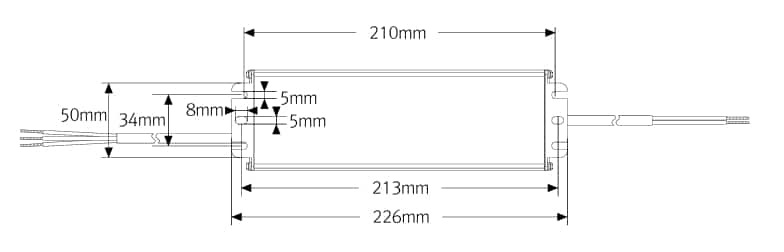

| D24200
| Driver 24VDC 200W FEEL | 226×67,5×39,5mm | 24V | 200W | 24V | Non dimmable |  |
| Reference | Description | Dimensions | Output | Pmax | Voltage | Dimming | – |
|---|---|---|---|---|---|---|---|

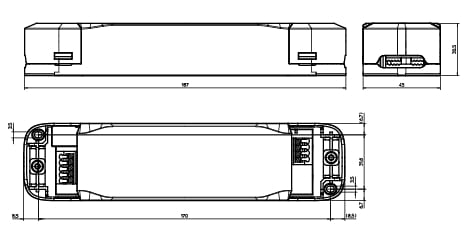

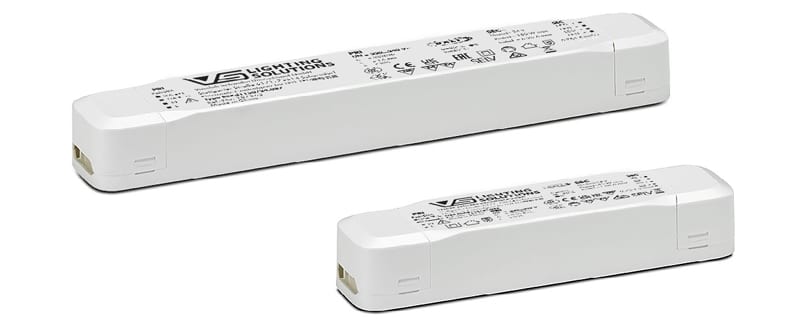

| D2445DAL
| Driver 24VDC 45W VSLH | 187x45x31mm | 24V | 45W | 24V | DALI |  |

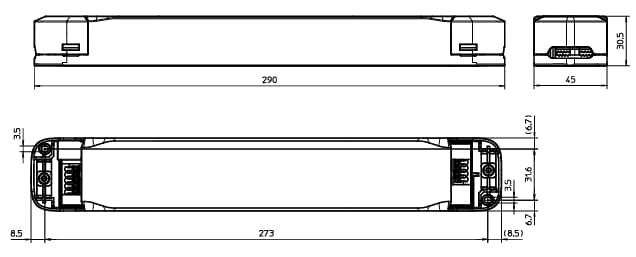

| D2480DAL
| Driver 24VDC 80W VSLH | 290x45x31mm | 24V | 75W | 24V | DALI |  |
| D24150DAL
| Driver 24VDC 150W VSLH | 290x45x31mm | 24V | 120W | 24V | DALI | |

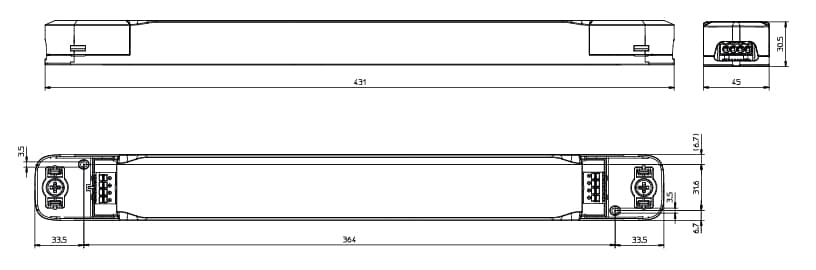

| D24250DAL
| Driver 24VDC 250W VSLH | 431x45x31mm | 24V | 180W | 24V | DALI |  |
Dimming interface for constant voltage drivers
| Reference | Description | Dimensions | Output | Pmax | Voltage | Dimming | – |
|---|---|---|---|---|---|---|---|

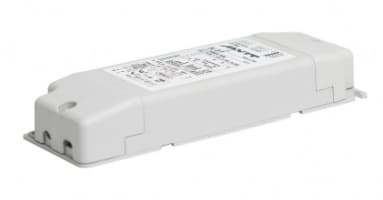

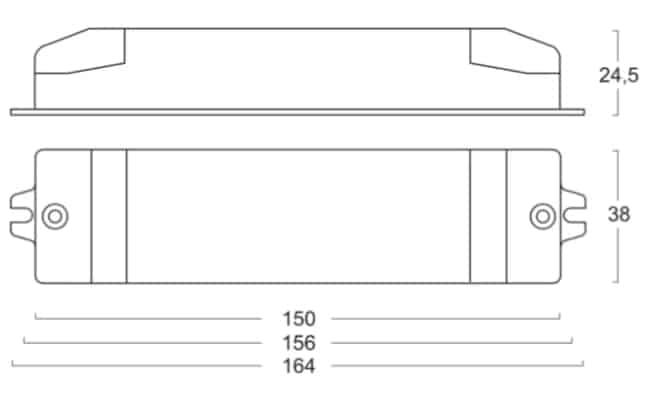

| DDLDP
| Interface ALV | 164x38x24,5mm | 12A | 288W | 24V-48V | DALI / PUSH / 1-10V |  |
Drivers

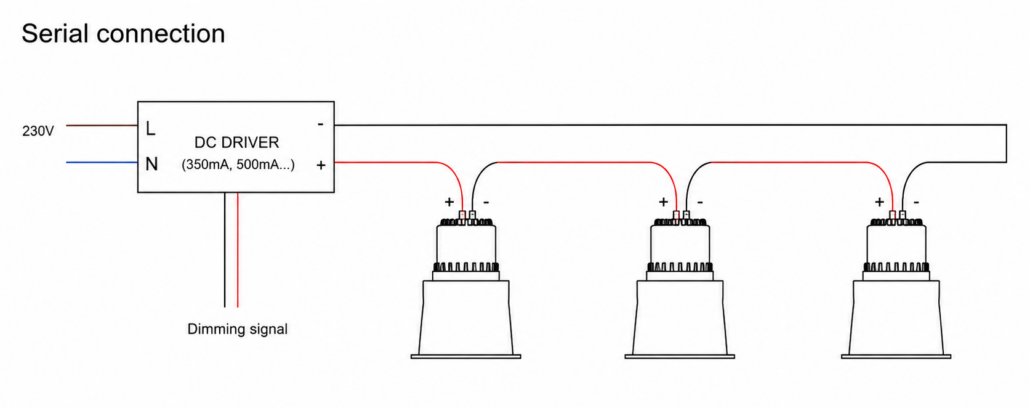

Constant current drivers
| Reference | Description | Dimensions | Output | Pmax | Voltage | Dimming | – |
|---|---|---|---|---|---|---|---|
D150MA6W | Driver VSLH | Ø42x22mm | 150mA | 6,3W | 24-42V | Non dimmable |  |
| D250MA12W | Driver VSLH | Ø42x22mm | 250mA | 12W | 27-48V | Non dimmable | |

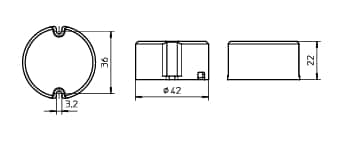

| D350MA14W | Driver VSLH | Ø42x22mm | 350mA | 14W | 22-40V | Non dimmable |  |

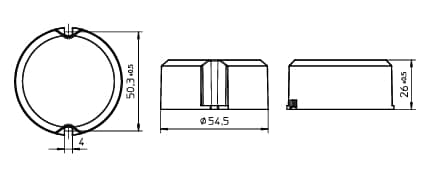

| D500MA22W | Driver VSLH | Ø54,5x26mm | 500mA | 22W | 28-43W | Non dimmable |  |

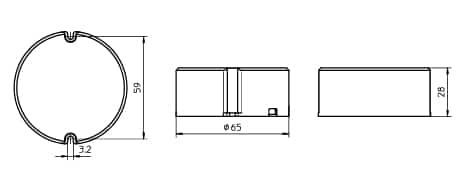

| D700MA30W | Driver VSLH | Ø65x28mm | 700mA | 30W | 28-42V | Non dimmable |  |
D350MA8W | Driver VSLH | 153x41x32mm | 350mA | 8,75W | 3-25V | Non dimmable |  |
D100MA4WDTR | Driver TRIAC VSLH | 85x50x19mm | 100mA | 4W | 29-40V | Phase dim |  |
| D150MA6WDTR | Driver TRIAC VSLH | 85x50x20mm | 150mA | 6W | 29-40V | Phase dim | |
| D250MA10WDTR | Driver TRIAC VSLH | 100x50x19mm | 250mA | 10W | 29-40V | Phase dim | |
| Reference | Description | Dimensions | Output | Pmax | Voltage | Dimming | – |
|---|---|---|---|---|---|---|---|
D250MA10WNDI | Driver TRI | 147×42.8×29.8mm | 150mA 180mA 200mA 250mA | 6,3W 7,6W 8,4W 10,5W | 24-42V | Non dimming |  |
| Reference | Description | Dimensions | Output | Pmax | Voltage | Dimming | – |
|---|---|---|---|---|---|---|---|

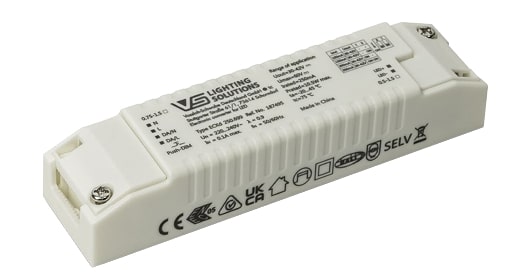

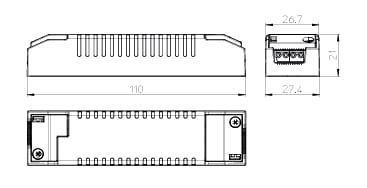

| D250MADAL
| Driver DIP Switch Mini Slim VSHL | 110×27,4x21mm | 100mA 150mA 200mA 250mA | 4,2W 6,3W 8.4W 10.5W | 30-42V | DALI2 / PUSH |  |
| D350MADAL
| Driver DIP Switch VSHL | 85x32x22mm | 120mA 150mA 180mA 200mA 250mA 280mA 300mA 350mA | 5,04W 6,3W 7,56W 8,4W 10,5W 11,76W 12,6W 14,7W | 9-42V | DALI2 / PUSH |  |

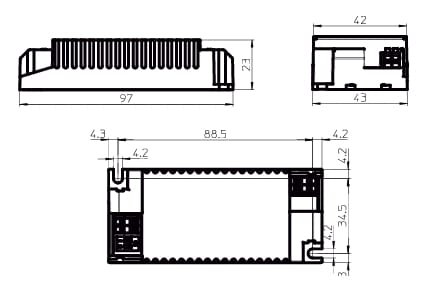

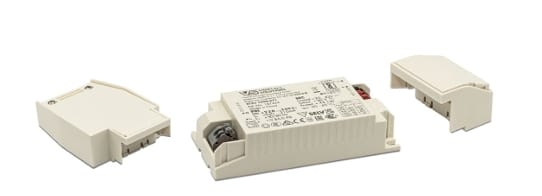

| D400MADAL
| Driver DIP Switch VSHL | 97x47x23mm | 250mA 300mA 350mA 400mA | 10,5W 12,6W 14,7W 16,8W | 20-42V | DALI2 / PUSH |  |
| D600MADAL
| Driver DIP Switch VSHL | 97x47x23mm | 450mA 500mA 550mA 600mA | 18,9W 21W 23,1W 25,2W | 20-42V | DALI2 / PUSH | |
| D800MADAL
| Driver DIP Switch VSHL | 97x47x23mm | 650mA 700mA 750mA 800mA | 27,3W 29,4W 31,5W 33,6W | 20-42V | DALI2 / PUSH | |

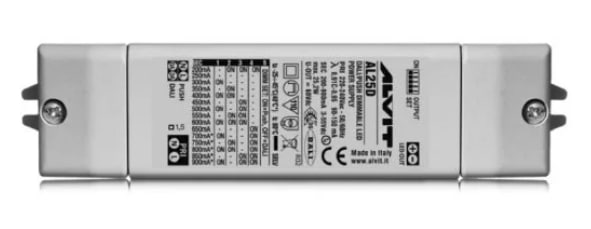

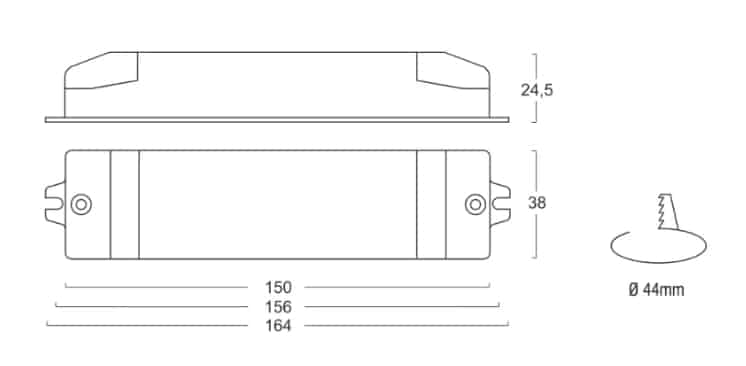

| DAL25DHYBRID
| Driver multi-power adjustable version dip-switch, constant current for power LED | 164x38x24.5mm | 200mA 250mA 300mA 350mA 400mA 450mA 500mA 550mA 600mA 650mA 700mA 750mA 800mA 850mA 900mA | 11W 13,5W 16,5W 19,25W 22W 24,75W 25W 25,3W 25,2W 25,3W 25,2W 25,5W 25,6W 25,5W 25,2W | 9-55V 9-55V 9-55V 9-55V 9-55V 9-55V 9-50V 9-46V 6-42V 6-39V 3-36V 3-34V 3-32V 3-30V 3-28V | DALI2 / PUSH |  |

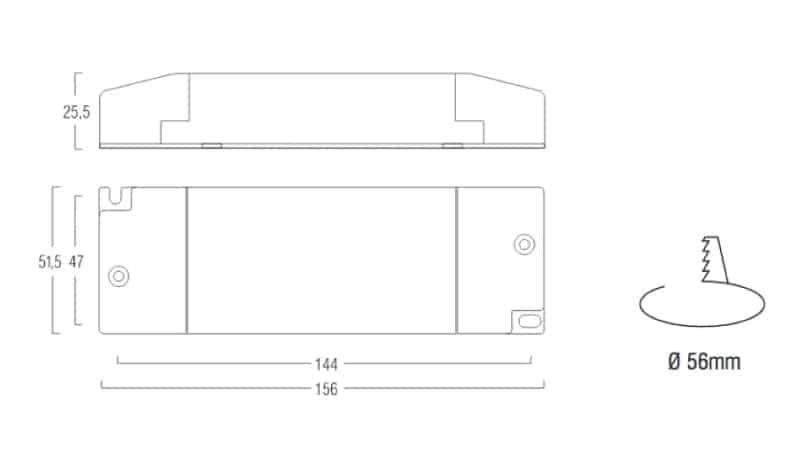

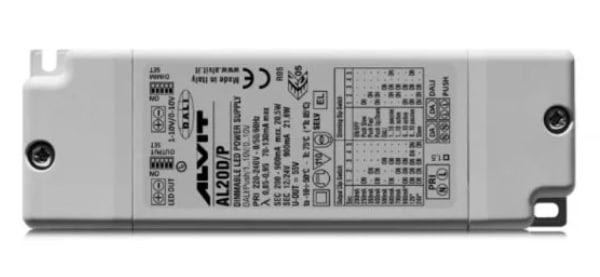

| DAL20DP
| Driver multi-power adjustable version dip-switch, constant current for power LED | 156×51.5×25.5mm | 200mA 250mA 300mA 350mA 400mA 450mA 500mA 550mA 600mA 650mA 700mA 750mA 800mA 850mA 900mA | 9,2W 11,5W 13,8W 16,1W 18,4W 20,7W 23W 25,3W 27,6W 27,3W 28W 27,75W 28W 27,2W 27W | 9-46V 9-46V 9-46V 9-46V 9-46V 9-46V 9-46V 6-46V 6-46V 6-42V 3-40V 3-37V 3-35V 3-32V 3-30V | DALI2 / PUSH / 1-10V |  |

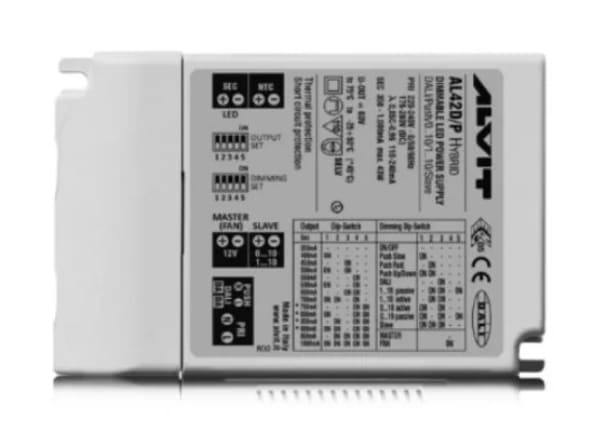

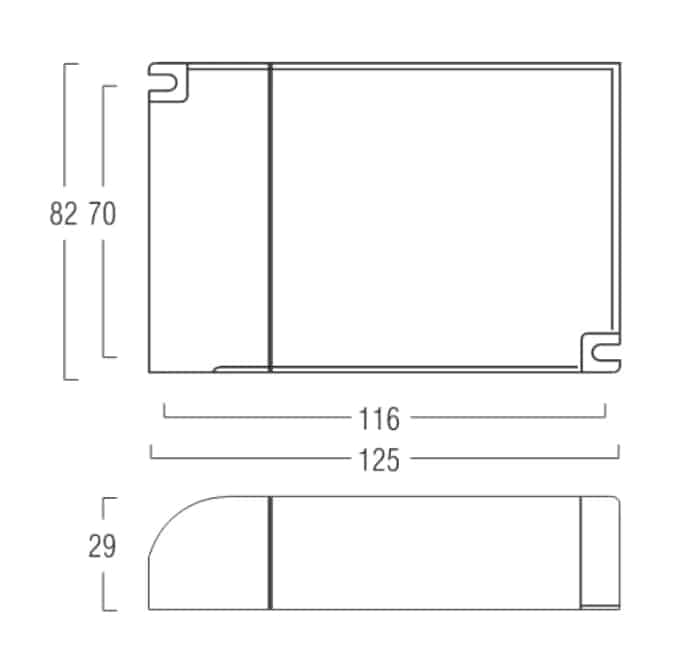

| DAL42DP
| Driver multi-power adjustable version dip-switch, constant current for power LED | 125x82x29mm | 350mA 400mA 450mA 500mA 550mA 600mA 650mA 700mA 750mA 800mA 850mA 900mA 950mA 1000m 1050m | 17W 19,2W 21,6W 24W 26,4W 28,8W 31,2W 33,6W 36W 38,4W 41W 43W 38W 40W 42W | 9-48V 9-48V 9-48V 9-48V 9-48V 9-48V 9-48V 9-48V 9-48V 9-48V 9-48V 9-48V 9-40V 9-40V 9-40V | DALI2 / PUSH / 1-10V |  |
