Curriculum-f 90 T230
10043
INDOOR
RECESSED
ALEXA, SIRI, GOOGLE
DIMMABLE
CASAMBI
WIRELESS
| Installation | Indoor |
| Mounting Position | Ceiling recessed |
| IP | 20 |
| Wattage | 10W |
| Lumen Output | 760 |
| Connection | 230V |
| Driver | Not required |
| Dimmable | Phase Dim |
| CRI | >90 |
| Life Time | L80/B10 >55.000 h |
| Cut-out Size | Ø80 h130mm |
| Dimmensions | Ø90 h112mm |
| Adjustable | No |
10043.10.**.*.10.DTR
| Number | W | Colour Temperature | Light Distribution | Finish | Dim |
|---|---|---|---|---|---|
| 10043 | 10 | 27 2700K |  1 Narrow 15º |  10 White | DTR Phase dim |
| 30 3000K |  2 Medium 25º | ||||
 3 Wide 36º |
10001.A.20.99 Spread lens
10001.A.10.99 Oval lens
10001.A.30.99 Honeycomb Louvre

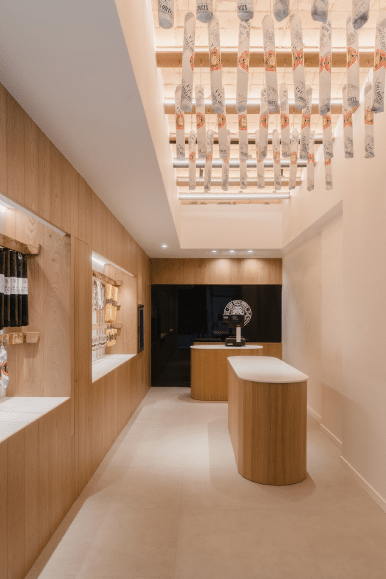

CASA RIERA ORDEIX / PROJECT: SANDRA SOLER STUDIO / PHOTO: MARC TORRA
